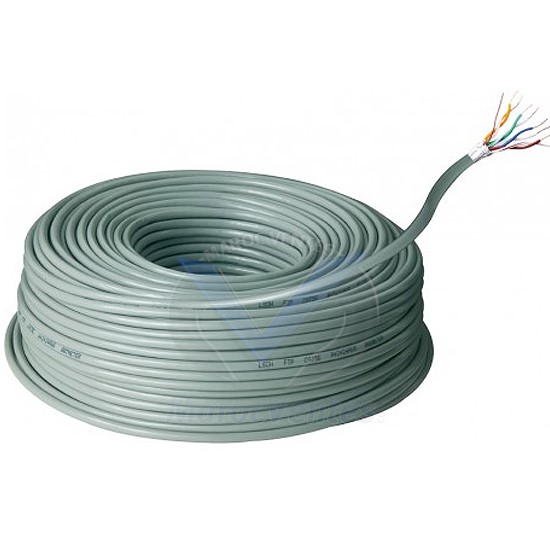

LINKTECH LIN-CAT6/FTP - BOBINE DE CABLE CERTIFIÉ CAT6A FTP/UTP 305M GRIS

Features:

● Complies with Category 6 UL444, ANSI/TIA/EIA 568B & ISO/IEC 11801 Standard ● Supports transmission of digital and analogue voice, data and video signal. ● Rated Temperature: -20° to +75° ● Adopts shielding Aluminum Foil, able to reach a very good shielding effect.

Application:

● 1000 Base T (IEEE 802.3) ● Fast Ethernet (IEEE 802.3u) ● 100vg-AnyLAN (IEEE 802.12) ● Token Ring (IEEE 802.5) ● TP-PMD (ANSI X3T9.5) TR-4, TR-16 Active, TR-16 Passive ● 1000 Mbps CDDI ● ATM 1000 Mbps

Performance:

ELECTRICAL CHARACTERISTICS(20℃)

PROPAGATION DELAY @ 100MHZ ≧537.6 ns/100M

PROPAGATION DELAY SKEW:MAX. ≧45ns/100M

DIELECTRIC STRENGTH AC-500V/1 MIN NO BREAKDOWN

D-C RESISTANCE UNBALANCE:MAX2%

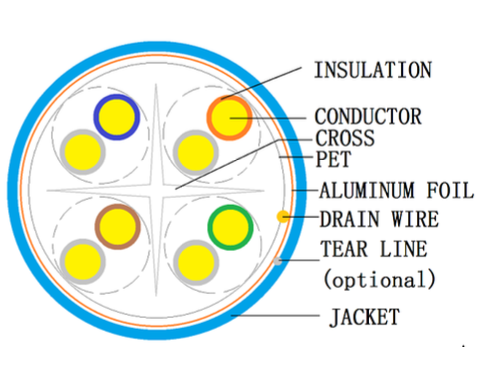

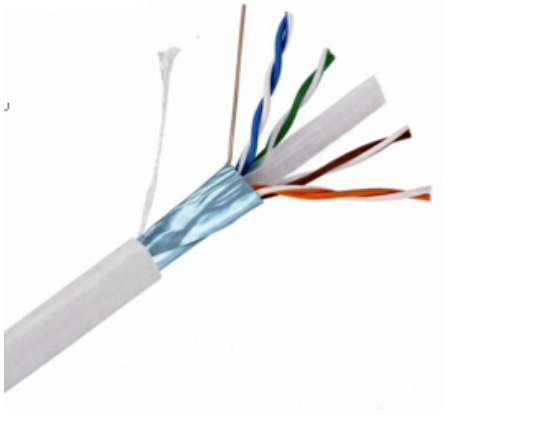

Cable Construction:

Inner conductor

Material Copper Clad Sliver

Diameter 0.58 ± 0.01mm (23AWG)

Insulation(Dielectric)

Material Color-coded PE (Polyethylene)

Average

Thickness

0.22mm

Diameter 1.03 ± 0.01mm

Cross Separator Material Plastic

Shielded Layer Material Aluminum Foil+PET

Outer Jacket

Material New PVC (rip cord)

Thickness ≥ 0.6mm

Nominal O.D 6.40mm ± 0.20mm

Color GREY

Twisted pair N/A

Pair 1 : Blue, White / Blue

Pair 2 : Orange, White / Orange

Pair 3 : Green, White / Green

Pair 4 : Brown, White / Brown

Printing words:

LINK TECH CAT 6A FTP 23AWG/4P NETWORK CABLE VERIFIED TO TIA/EIA 568B 001-305M

Packing:

● 1000ft/ 305m per pull drum, 2drums/carton

● Custom label on drum surface
